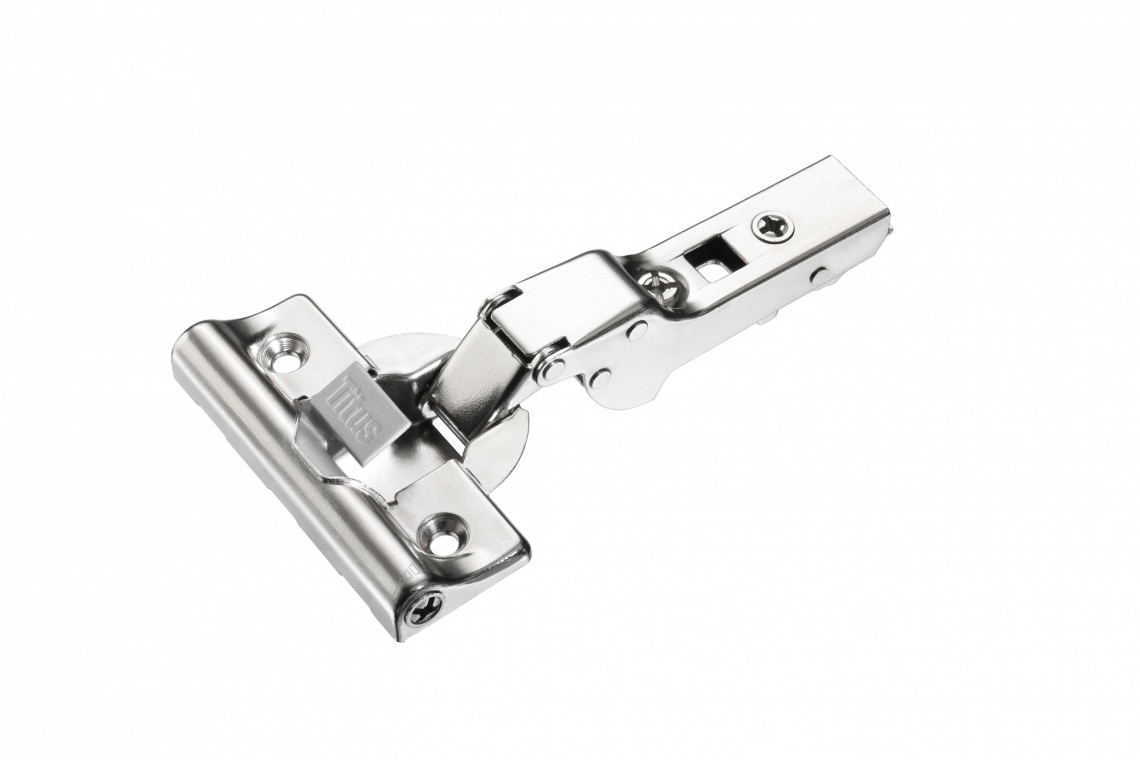

Why are manufacturers and retailers making the switch to T-type?
The T-type hinge is everything we've learnt through 65+ years of connector manufacturing and engineering housed in one exceptional piece of cabinet hardware.
Some of the biggest global kitchen retailers are amongst the manufacturers who have brought the T-type into their products, elevating their offering with the most reliable soft close hinge on the market, capable of carrying a 25% heavier door from a shallow 11.7mm drilling depth.
Some of the biggest global kitchen retailers are amongst the manufacturers who have brought the T-type into their products, elevating their offering with the most reliable soft close hinge on the market, capable of carrying a 25% heavier door from a shallow 11.7mm drilling depth.

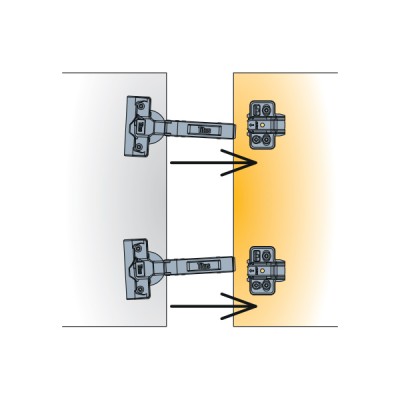

3Way Snap-on Mounting
Our 3Way snap-on mounting plate allows for an intuitive hinge-to-plate mounting in three directions (from the front, the back and the top). Mounting cabinet doors - even the tallest ones! - has never been this easy.

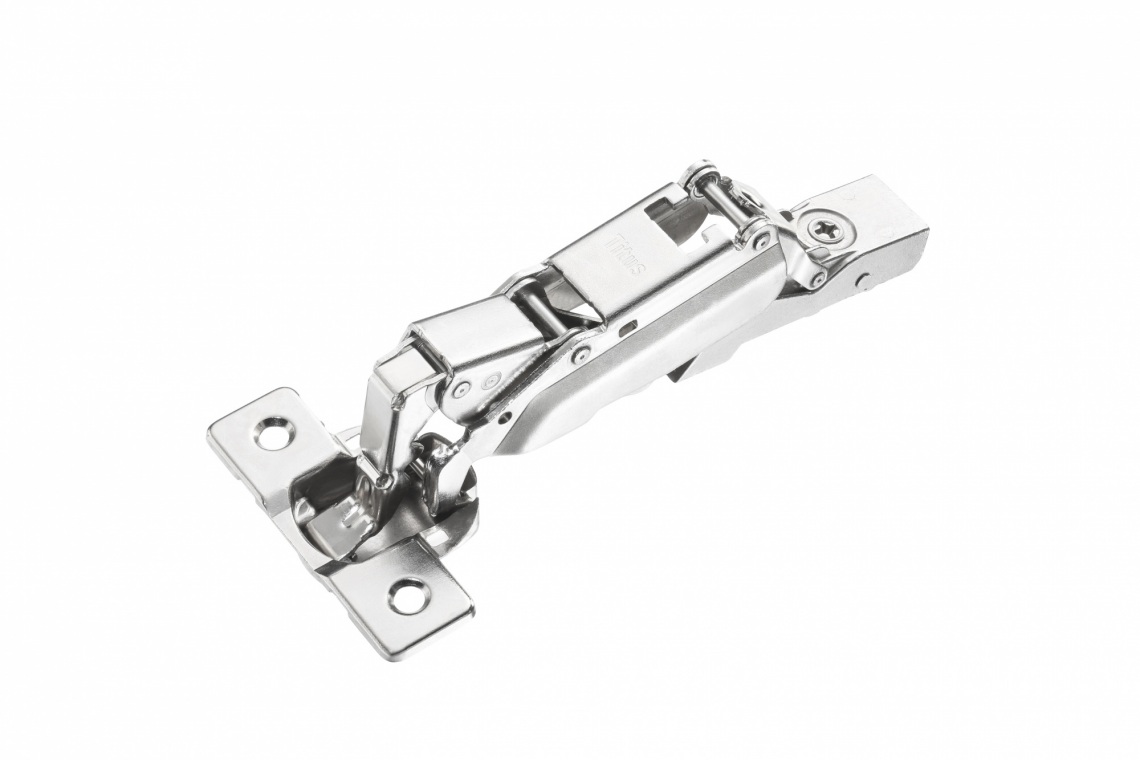

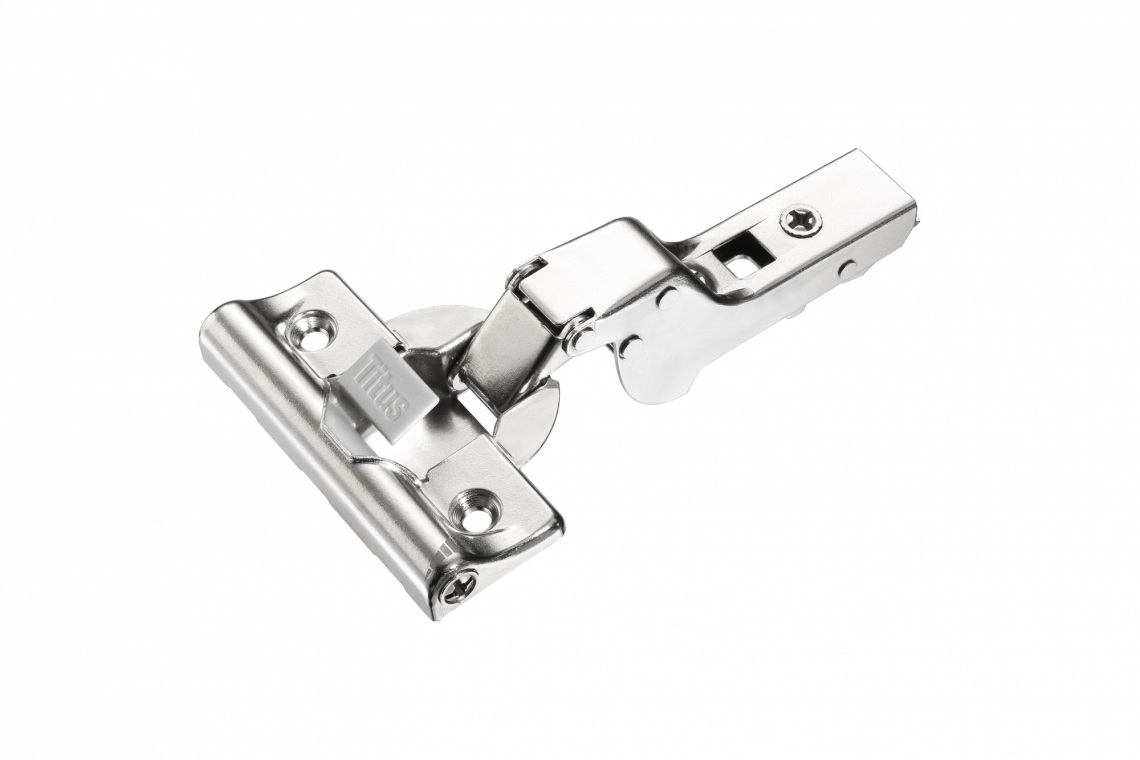

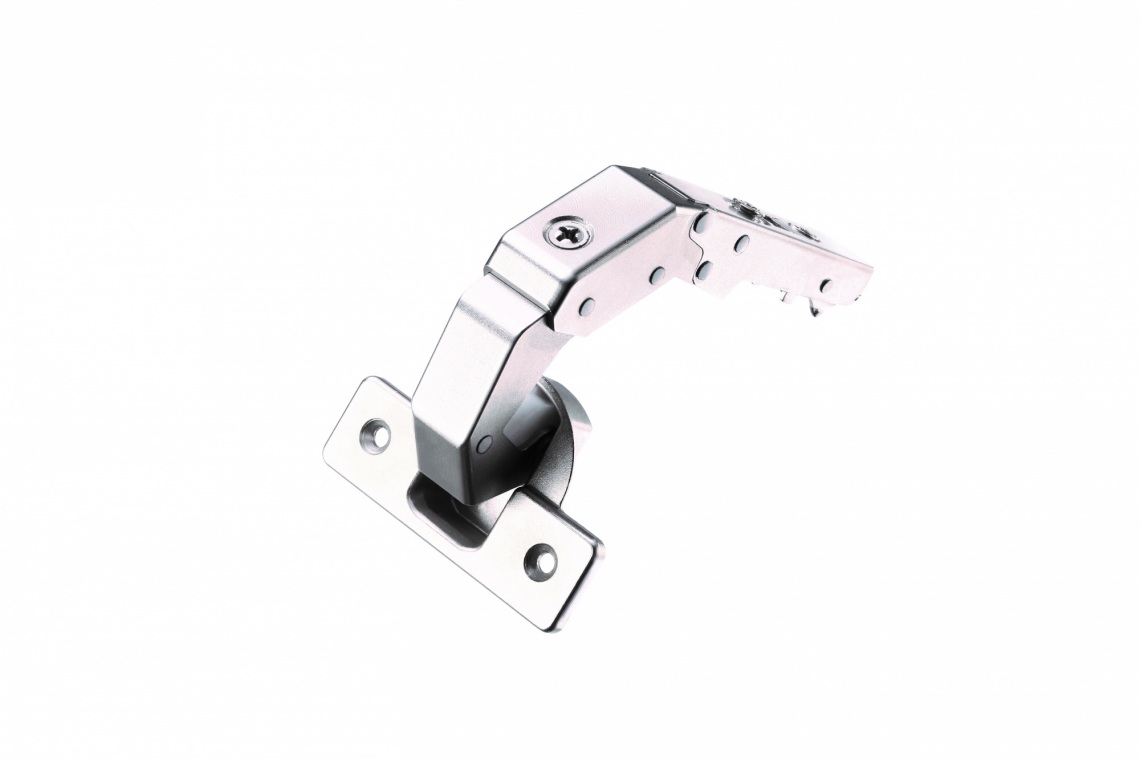

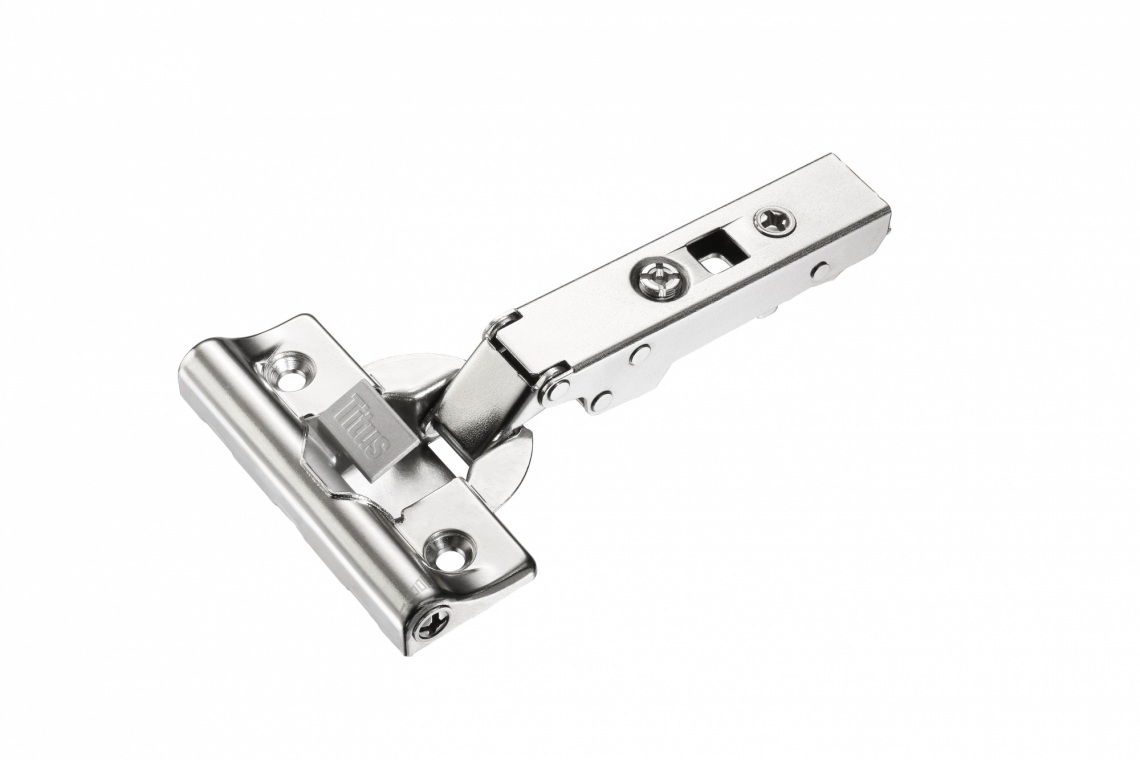

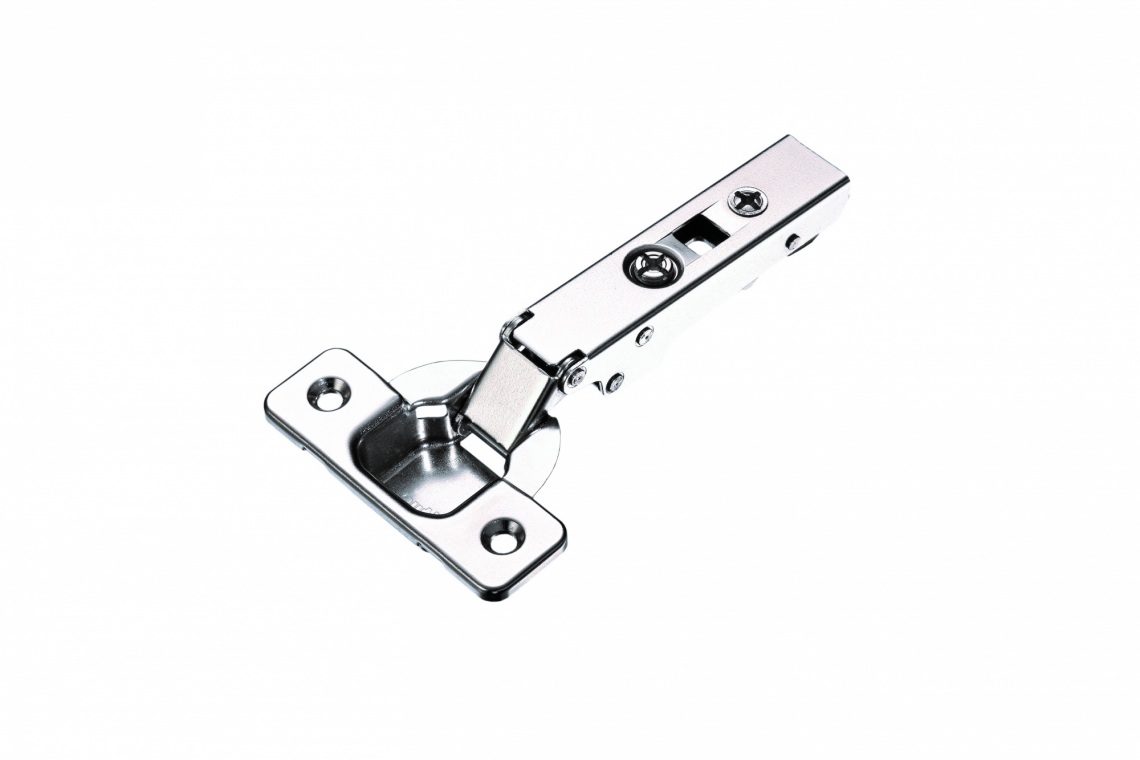

One Reliable Hinge for Doors of any Size or Thickness
Low or tall, thick or thin: T-type is a unique solution that works on doors of different dimensions and weights, with no rebounce. The perfect solution for kitchen, bedroom, and all other types of furniture.

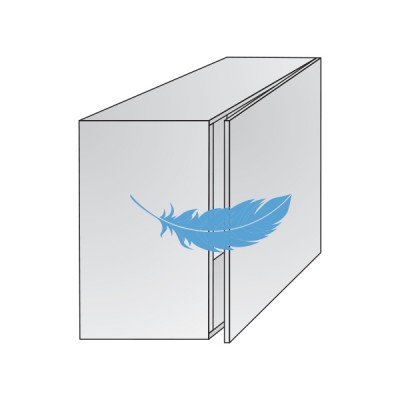

ConfidentClose - First time, Every Time
The T-type's ConfidentClose damping ensures fast closing with late start deceleration and quiet landing from the last four degrees of closing. With superb performance and reliability, even under severe loading and testing, the T-type will perform the first time, the thousandth time and the ten thousandth time for a lifetime of soft closing.
The T-type's ConfidentClose damping ensures fast closing with late start deceleration and quiet landing from the last four degrees of closing. With superb performance and reliability, even under severe loading and testing, the T-type will perform the first time, the thousandth time and the ten thousandth time for a lifetime of soft closing.

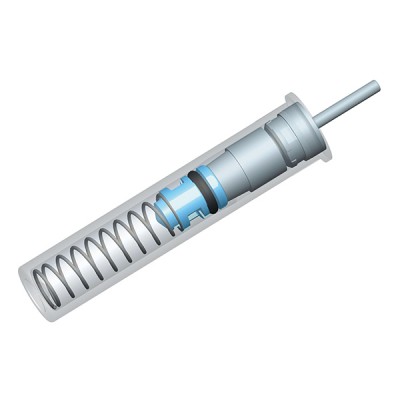

Titus Damper Inside
The fully-adjustable Titus damper inside allows you to make sure all doors in a unit operate with the same ConfidentClose. With its positioning transversal to the hinge cup, the Titus proprietary damping technology allows for easy introduction of various hinge versions and is easily adjusted to suit different types of doors.
The fully-adjustable Titus damper inside allows you to make sure all doors in a unit operate with the same ConfidentClose. With its positioning transversal to the hinge cup, the Titus proprietary damping technology allows for easy introduction of various hinge versions and is easily adjusted to suit different types of doors.
High Tolerance & Efficient Performance
T-type is a tolerant, smoothly performing, yet rigid and reliable cabinet hinge. It ensures reliable door closing even in case of accidental misalignment, and comes with an intuitive adjustment procedure. Hinge-to-plate attachment assures stability and rigidity, while also ensuring a smooth performance.
T-type is a tolerant, smoothly performing, yet rigid and reliable cabinet hinge. It ensures reliable door closing even in case of accidental misalignment, and comes with an intuitive adjustment procedure. Hinge-to-plate attachment assures stability and rigidity, while also ensuring a smooth performance.
Technical Overview
| Opening angle: | 110°, 170° |
| Hinge cup drilling depth: | 11.7mm |
| Hinge cup drilling pattern: | 45/9.5mm, 52/10mm |
| Hinge arms: | Full overlay, half overlay, inset, angled |
| Fixing: | Screw-on ready, euro scews, wood screws, dowels for machine insertion, FastFix expando dowels, EasyFix |
| 3Way mounting plate type: | Cruciform, linear |
| 3Way mounting plate height: | 0-2-3 mm |
| 3Way mounting plate fixing: | Screw-on ready, euro screws, wood screws, dowels for machine insertion, expando dowels |

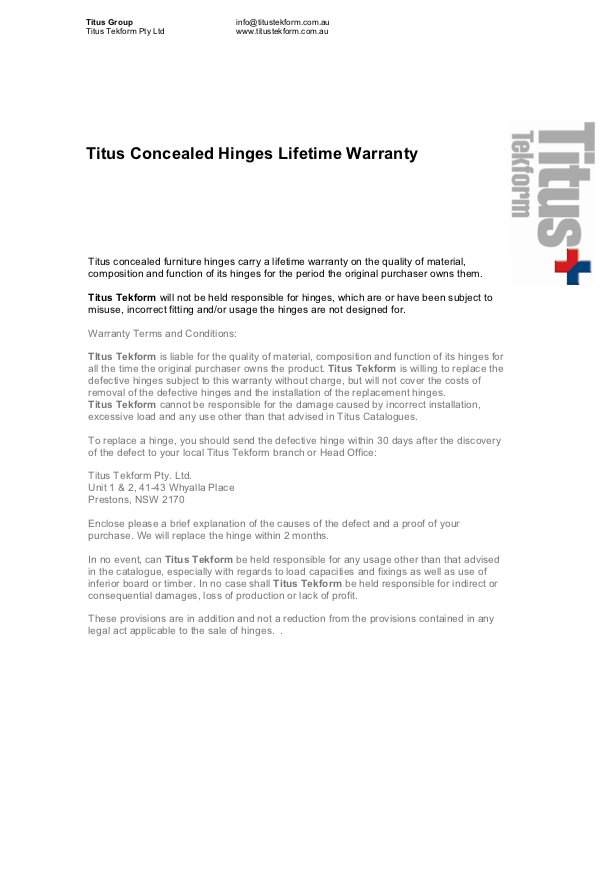

Lifetime Warranty
