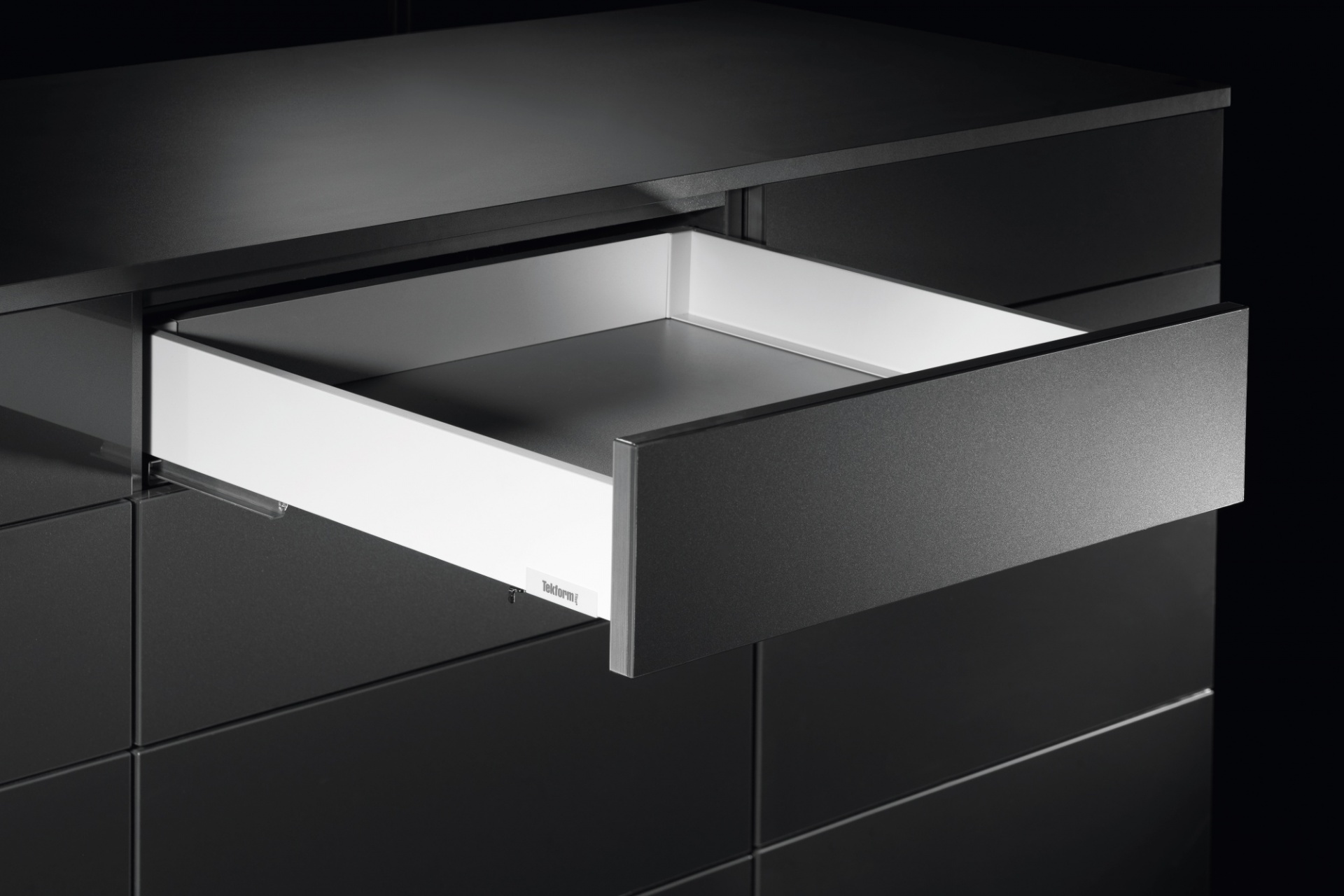

Tekform Slimline Drawer DW70
:::
Quantity:
- Narrow sides for a sleek look and efficient utilisation of drawer space
- Full extension 40kg runners
- Two colour options
- Accessories to customise the drawer
- Titus 'EasyFix' connectors
- Integrated Titus 'Confident Close' damping system
- Intuitive installation and adjustment
- Quality tested and certified by FIRA Level H and CATAS
- Screw-Fix Front Brackets available
- Screws not included
- One set consists of: Drawer sides (2 pcs), Drawer runner (2 pcs), EasyFix front connectors (2 pcs), Rear connectors (2 pcs) & Decorative covers (2 pcs)
- Height: 70
- Closing: Integrated soft close
- Extension: Full Extension
- Weight capacity: 40kg
- Height adjustment: +2 / -2 mm
- Side adjustment: +/-1mm
- Minimal required height space (mm): 115
- Wooden back panel thickness (mm): 16
- Wooden bottom panel thickness (mm): 16
2017 08 Tekform slimline drawer InstrManual print
DownloadProduct Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Front connector type | Unit of Measure | Finish | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 655.8T27.150.00 | EasyFix | Each | White | 1 | 270 | $ 61.34 | In stock | ||
| 655.8T35.150.00 | EasyFix | Each | White | 1 | 350 | $ 63.28 | In stock | ||
| 655.8T40.150.00 | EasyFix | Each | White | 1 | 400 | $ 64.88 | In stock | ||
| 655.8T45.150.00 | EasyFix | Each | White | 1 | 450 | $ 68.97 | In stock | ||
| 655.8T50.150.00 | EasyFix | Each | White | 1 | 500 | $ 72.42 | In stock | ||
| 655.8T55.150.00 | EasyFix | Each | White | 1 | 550 | $ 72.74 | In stock | ||
| 655.8T27.185.00 | EasyFix | Each | Anthracite | 1 | 270 | $ 61.34 | In stock | ||
| 655.8T35.185.00 | EasyFix | Each | Anthracite | 1 | 350 | $ 63.28 | In stock | ||
| 655.8T40.185.00 | EasyFix | Each | Anthracite | 1 | 400 | $ 642.40 | In stock | ||
| 655.8T45.185.00 | EasyFix | Each | Anthracite | 1 | 450 | $ 68.97 | Back order | ||
| 655.8T50.185.00 | EasyFix | Each | Anthracite | 1 | 500 | $ 72.42 | Back order | ||
| 655.8T55.185.00 | EasyFix | Each | Anthracite | 1 | 550 | $ 72.74 | In stock |
