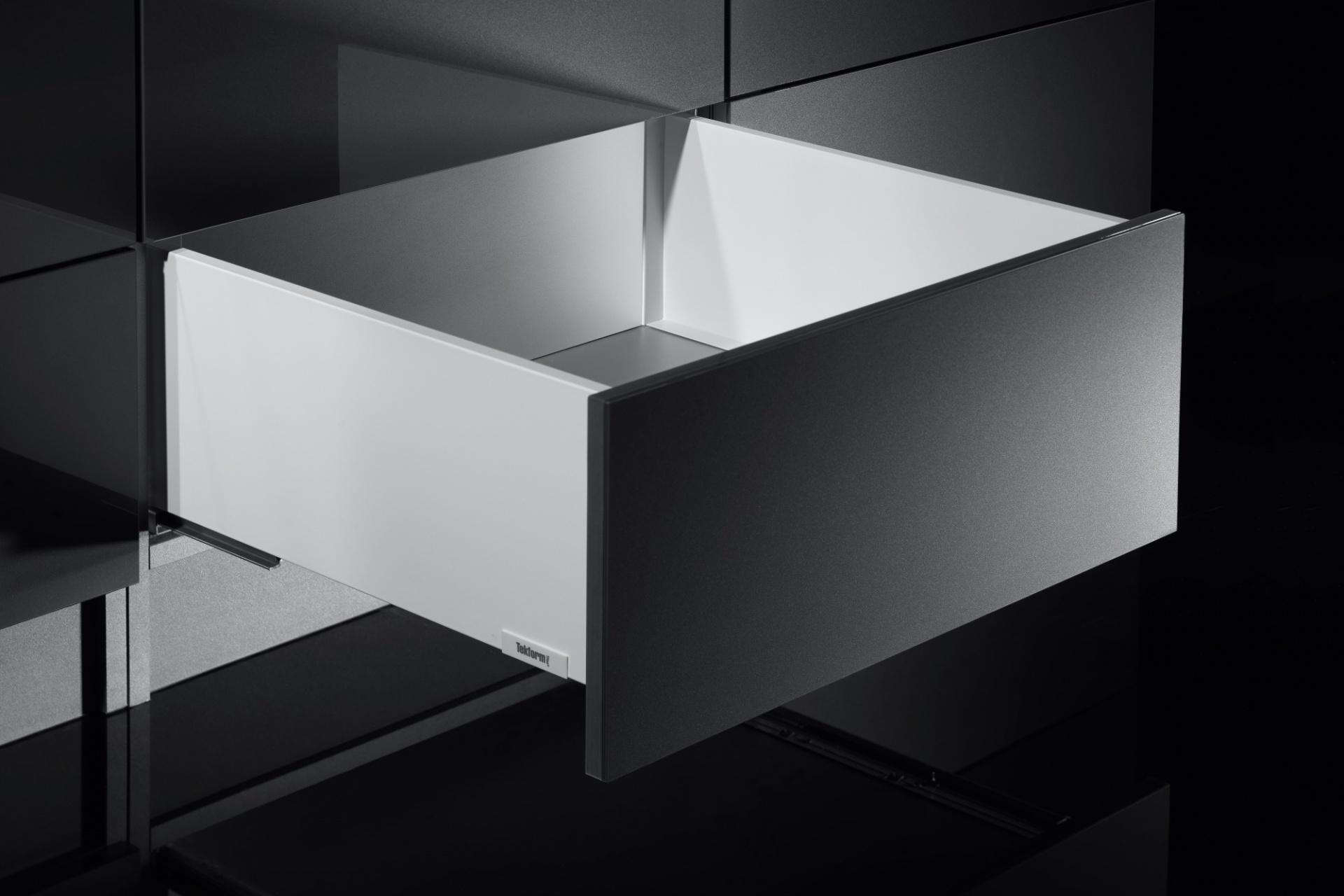

Tekform Slimline Drawer DW182
:::
Quantity:
- Narrow sides for a sleek look and efficient utilisation of drawer space
- Full extension 40kg runners
- Two colour options
- Accessories to customise the drawer
- Titus 'EasyFix' connectors
- Integrated Titus 'Confident Close' damping system
- Intuitive installation and adjustment
- Quality tested and certified by FIRA Level H and CATAS
- Screw-Fix Front Brackets available.
- Screws not included
- One set consists of: Drawer sides (2 pcs), Drawer runner (2 pcs), EasyFix front connectors (2 pcs), Rear connectors (2 pcs) & Decorative covers (2 pcs)
- Height: 182
- Closing: Integrated soft close
- Extension: Full Extension
- Weight capacity: 40kg
- Height adjustment: +2 / -2 mm
- Side adjustment: +/-1mm
- Minimal required height space (mm): 230
- Wooden back panel thickness (mm): 16
- Wooden bottom panel thickness (mm): 16
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Front connector type | Unit of Measure | Finish | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 655.8Z27.150.00 | EasyFix | Each | White | 1 | 270 | $ 83.58 | In stock | ||
| 655.8H35.185.00 | Screw-on | Each | Anthracite | 2 | 350 | $ 87.86 | Back order | ||
| 655.8H35.150.00 | Screw-on | Each | White | 1 | 350 | $ 87.86 | Back order | ||
| 655.8H45.150.00 | Screw-on | Each | White | 1 | 450 | $ 96.65 | In stock | ||
| 655.8H40.150.00 | Screw-on | Each | White | 1 | 400 | $ 90.68 | Back order | ||
| 655.8H50.185.00 | Screw-on | Each | Anthracite | 1 | 500 | $ 101.84 | Back order | ||
| 655.8H50.150.00 | Screw-on | Each | White | 1 | 500 | $ 101.84 | Back order | ||
| 655.8Z35.150.00 | EasyFix | Each | White | 1 | 350 | $ 87.86 | In stock | ||
| 655.8H55.150.00 | Screw-on | Each | White | 1 | 550 | $ 103.22 | Back order | ||
| 655.8Z45.150.00 | EasyFix | Each | White | 1 | 450 | $ 95.92 | In stock | ||
| 655.8Z55.150.00 | EasyFix | Each | White | 1 | 550 | $ 103.22 | Back order | ||
| 655.8Z50.150.00 | EasyFix | Each | White | 1 | 500 | $ 101.84 | In stock | ||
| 655.8Z40.150.00 | EasyFix | Each | White | 1 | 400 | $ 90.68 | In stock | ||
| 655.8Z27.185.00 | EasyFix | Each | Anthracite | 1 | 270 | $ 83.58 | In stock | ||
| 655.8Z40.185.00 | EasyFix | Each | Anthracite | 1 | 400 | $ 90.68 | In stock | ||
| 655.8Z35.185.00 | EasyFix | Each | Anthracite | 1 | 350 | $ 87.86 | In stock | ||
| 655.8Z50.185.00 | EasyFix | Each | Anthracite | 1 | 500 | $ 101.84 | In stock | ||
| 655.8Z45.185.00 | EasyFix | Each | Anthracite | 1 | 450 | $ 95.92 | In stock | ||
| 655.8Z55.185.00 | EasyFix | Each | Anthracite | 1 | 550 | $ 103.22 | In stock | ||
| 655.8H27.185.00 | Screw-on | Each | Anthracite | 1 | 270 | $ 83.58 | Back order | ||
| 655.8H27.150.00 | Screw-on | Each | White | 1 | 270 | $ 83.58 | In stock | ||
| 655.8H45.185.00 | Screw-on | Each | Anthracite | 1 | 450 | $ 96.65 | Back order | ||
| 655.8H40.185.00 | Screw-on | Each | Anthracite | 1 | 400 | $ 90.68 | Back order | ||
| 655.8H55.185.00 | Screw-on | Each | Anthracite | 1 | 550 | $ 103.22 | Back order |
