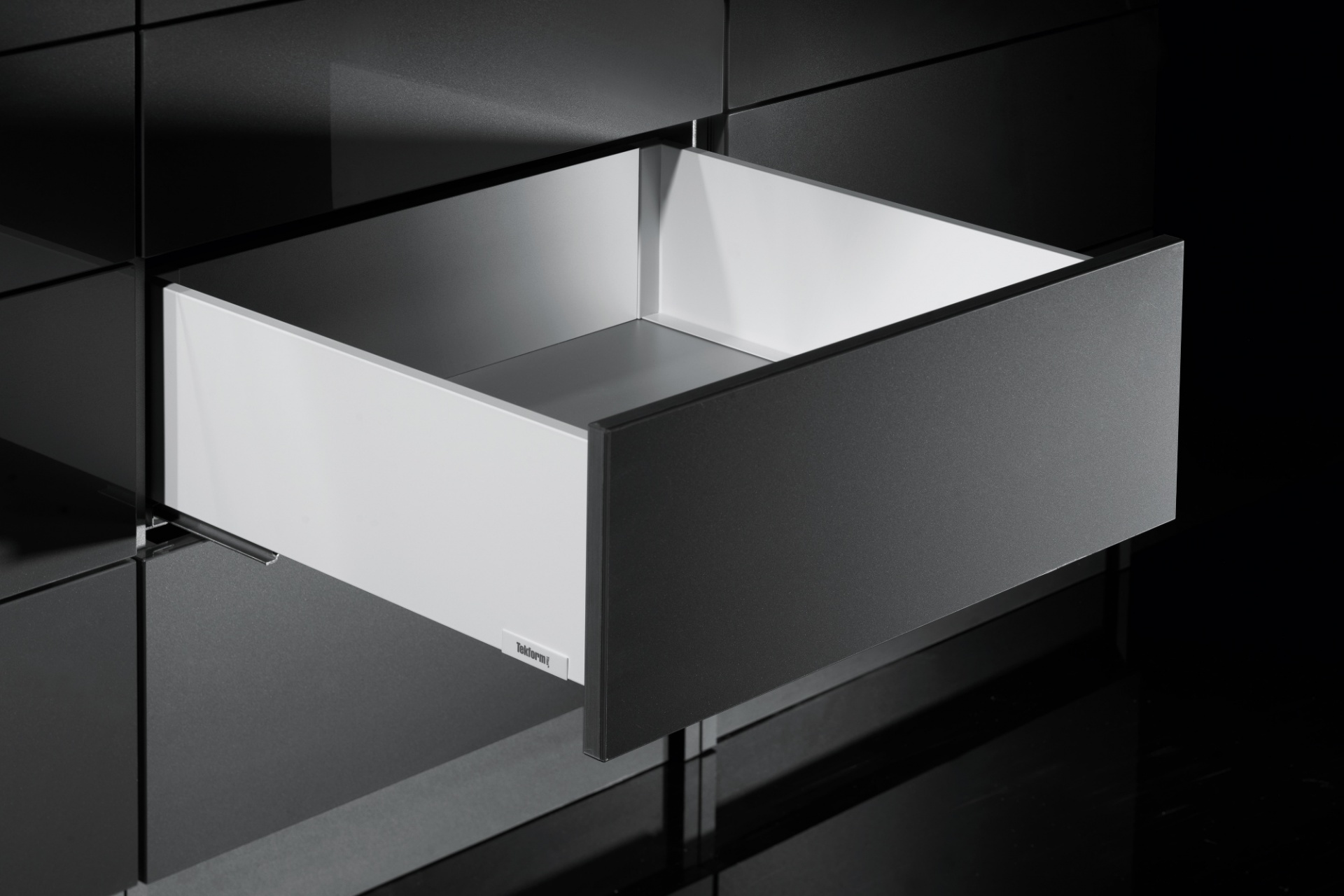

Tekform Slimline Drawer DW145
:::
Quantity:
- Narrow sides for a sleek look and efficient utilisation of drawer space
- Full extension 40kg runners
- Two colour options
- Accessories to customise the drawer
- Titus 'EasyFix' connectors
- Integrated Titus 'Confident Close' damping system
- Intuitive installation and adjustment
- Quality tested and certified by FIRA Level H and CATAS
- Screw-Fix Front Brackets available.
- Screws not included
- One set consists of: Drawer sides (2 pcs), Drawer runner (2 pcs), EasyFix front connectors (2 pcs), Rear connectors (2 pcs) & Decorative covers (2 pcs)
- Height: 145
- Closing: Integrated soft close
- Extension: Full Extension
- Weight capacity: 40kg
- Height adjustment: +2 / -2 mm
- Side adjustment: +/-1mm
- Minimal required height space (mm): 198
- Wooden back panel thickness (mm): 16
- Wooden bottom panel thickness (mm): 16
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Front connector type | Unit of Measure | Finish | Min. Order Qty | Length (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 655.8V27.150.00 | EasyFix | Each | White | 1 | 270 | $ 79.13 | In stock | ||
| 655.8G27.185.00 | Screw-on | Each | Anthracite | 1 | 270 | $ 79.13 | Back order | ||
| 655.8G27.150.00 | Screw-on | Each | White | 1 | 270 | $ 79.13 | Back order | ||
| 655.8G50.185.00 | Screw-on | Each | Anthracite | 1 | 500 | $ 94.69 | Back order | ||
| 655.8G35.150.00 | Screw-on | Each | White | 1 | 350 | $ 83.56 | Back order | ||
| 655.8G45.185.00 | Screw-on | Each | Anthracite | 1 | 450 | $ 90.20 | Back order | ||
| 655.8G40.185.00 | Screw-on | Each | Anthracite | 1 | 400 | $ 85.03 | Back order | ||
| 655.8G40.150.00 | Screw-on | Each | White | 1 | 400 | $ 85.03 | Back order | ||
| 655.8G50.150.00 | Screw-on | Each | White | 1 | 500 | $ 94.69 | Back order | ||
| 655.8G45.150.00 | Screw-on | Each | White | 1 | 450 | $ 90.20 | Back order | ||
| 655.8G55.185.00 | Screw-on | Each | Anthracite | 1 | 550 | $ 95.45 | Back order | ||
| 655.8G55.150.00 | Screw-on | Each | White | 1 | 550 | $ 95.45 | Back order | ||
| 655.8V45.150.00 | EasyFix | Each | White | 1 | 450 | $ 90.20 | In stock | ||
| 655.8V35.150.00 | EasyFix | Each | White | 1 | 350 | $ 83.56 | In stock | ||
| 655.8V40.150.00 | EasyFix | Each | White | 1 | 400 | $ 85.03 | In stock | ||
| 655.8V55.150.00 | EasyFix | Each | White | 1 | 550 | $ 95.45 | In stock | ||
| 655.8V50.150.00 | EasyFix | Each | White | 1 | 500 | $ 94.69 | In stock | ||
| 655.8V27.185.00 | EasyFix | Each | Anthracite | 1 | 270 | $ 79.13 | In stock | ||
| 655.8V35.185.00 | EasyFix | Each | Anthracite | 1 | 350 | $ 83.56 | Back order | ||
| 655.8V45.185.00 | EasyFix | Each | Anthracite | 1 | 450 | $ 90.20 | Back order | ||
| 655.8V40.185.00 | EasyFix | Each | Anthracite | 1 | 400 | $ 85.03 | In stock | ||
| 655.8V55.185.00 | EasyFix | Each | Anthracite | 1 | 550 | $ 95.45 | In stock | ||
| 655.8V50.185.00 | EasyFix | Each | Anthracite | 1 | 500 | $ 94.69 | Back order | ||
| 655.8G35.185.00 | Screw-on | Each | Anthracite | 1 | 350 | $ 83.56 | Back order |
