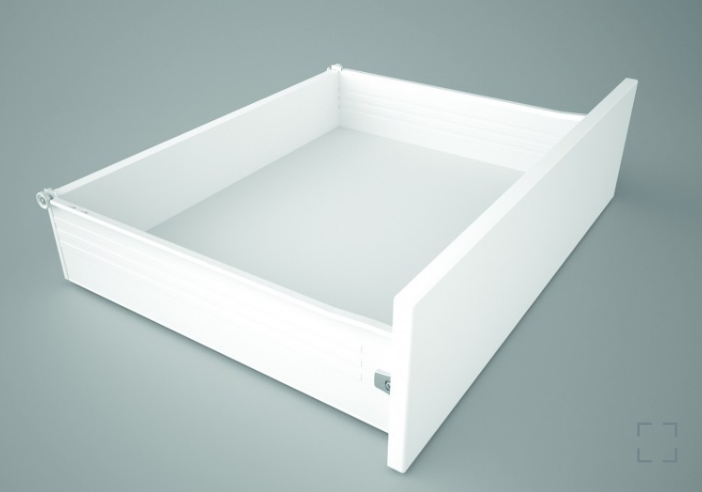

Tekform Drawer SW117
:::
Quantity:
- Large range of dimensions from 250 to 550 mm depth
- Screw on, dowel fixing machine insertion ready or C15 assembly options.
- Simple bottom mounting for ease of assembly
- Unilateral restraint-guide compensates for tolerances
- Height: 117 mm
- Finish: White
- Extension: Single Extension
- Side adjustment: +/-1.5 mm
- Height adjustment: +/-2.5 mm
- Weight capacity: 25kg
- Minimal required height space (mm): 138.5
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Unit of Measure | Note 1 | Length (mm) | Front connector type | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|
| 603.8C72.025.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 250 | C15 assembly | $ 9.18 | In stock | ||
| 603.8C72.027.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 270 | C15 assembly | $ 6.09 | In stock | ||
| 603.8C72.035.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 350 | C15 assembly | $ 11.94 | In stock | ||
| 603.8C72.040.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 400 | C15 assembly | $ 13.72 | In stock | ||
| 603.8C72.045.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 450 | C15 assembly | $ 15.10 | In stock | ||
| 603.8C72.050.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 500 | C15 assembly | $ 16.56 | In stock | ||
| 603.8C72.055.150 | Set | Drawer runner type: Roller slides. Wooden back panel thickness: 12-18 mm | 550 | C15 assembly | $ 17.88 | In stock |
