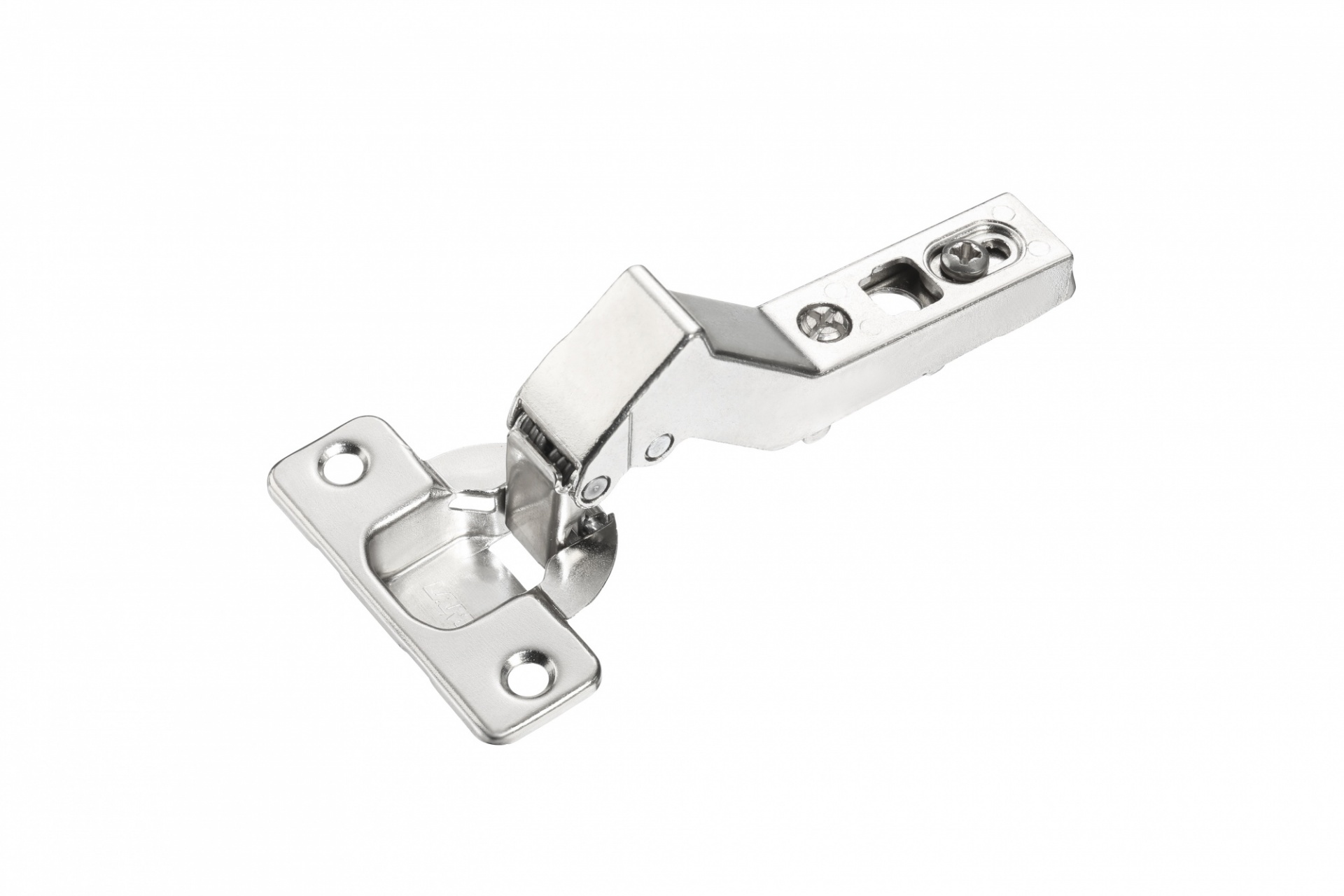

S-type 110/45° 18mm
::
Quantity:
- 45° angled application for wooden doors
- Hinge on plate mounting system: 'snap-on'
- Angled (°): 45
- Cranking (mm): 18
- Depth adjustment: +5 / -1.5 mm
- Drilling depth (mm): 11.5 mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: Snap-on
- Material: Steel & Zinc
- Side adjustment: +3 / -1 mm
- Opening angle (°): 110
Product Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Cup type | Unit of measure | Min. Qty. | Interaxis (mm) | Features | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 248.0285.050 | Screw-on ready | Each | 1 | 45 / 9.5 | Add-on Soft Closing | $ 1.35 | Limited Stock | ||
| 248.0291.050 | Screw-on ready | Each | 1 | 52 / 5.5 | Add-on Soft Closing | $ 5.52 | Back order | ||
| 248.0N20.050 | Machine insertion ready | Each | 1 | 45 / 9.5 | Add-on Soft Closing | $ 5.47 | Back order |
