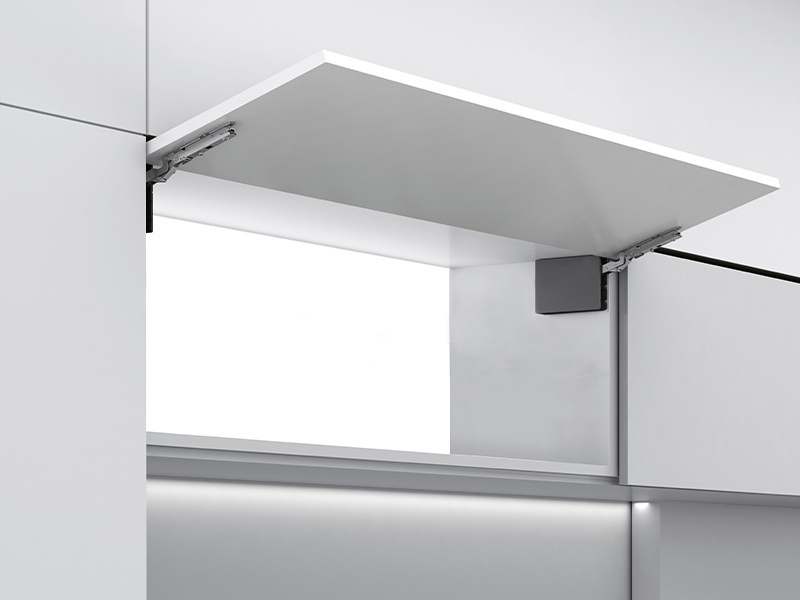

Nebo Overhead Lifter
Quantity:
- Double buffer function stops at any angle once the door opens above above 52°
- Integrated soft close damping with adjustment feature
- 6-way door adjustment with +/-2mm side and height adjustment and +/- 1.5mm tilt adjustment
- Minimum cabinet depth: 200mm
- Cabinet widths up to 1200mm
- Door heights: 300mm to 650mm
- If capacity overlaps two models, choose the smaller lifter
Nebo Lifters Install Guide
DownloadProduct Variations
Select your desired product variation below and click ‘Add to Cart’ to add it to your Shopping Cart
| Item No. | Unit of Measure | Weight capacity | Min. Order Qty | Max opening angle (°) | Door height (mm) | Qty | Price | Stock | Click for info |
|---|---|---|---|---|---|---|---|---|---|
| 606.8L10.200.300 | Set | 2.8kg - 7kg | 1 | 107 | 300-650 | $ 71.82 | In stock | ||
| 606.8L10.300.350 | Set | 4.5kg - 10kg | 1 | 107 | 350-650 | $ 71.82 | In stock | ||
| 606.8L10.400.400 | Set | 8kg - 12kg | 1 | 107 | 400-650 | $ 71.82 | In stock |
